Bandwidth 100MHz
Accuracy +/- 2%
Input Impedance 4Mohm//7pF each side to ground
Output Voltage
Swing (into 50kohm load) +/-7V
Offset (typical) <+/-5mV
Noise (typical) 0.9mVrms
Source Impedance (typical) 50 ohm
Power Requirements
Standard 4xAA cells or 6VDC/70mA mains adaptor
or regualted 9VDC/120mA mains adaptor
Options Power leads
Length of BNC Cable 90cm
Length of Input Leads 30cm
Weight 500g
Dimension (LxWxH) 202mm x 83mm x 38mm

Specifications

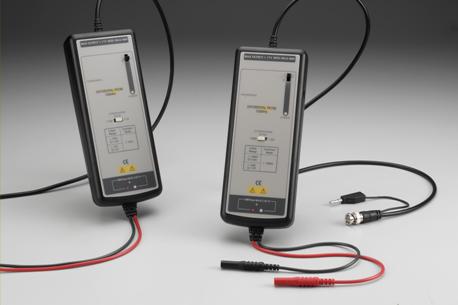

SI-9101
SI-9110
Attenuation Ratio
1:10/100
1:100/1000
CMRR (typical)
-85dB@50Hz, -55dB@1MHz
-80dB@60Hz, -50dB@1MHz
Differential Input voltage
(DC+Peak AC)
+/-70V@1/10
+/-700V@1/100
+/-140V@1/100
+/-1400V@1/1000
Common Mode Voltage
(DC+Peak AC)
+/-700V@1/10 & 1/100
+/-1400V@1/100 & 1/1000
Absolute Max. Input
(Each side to ground)
1000Vrms CAT III
1000Vrms CAT III

Features:
Bandwidth up to 100MHz
Up to +/- 1400V(DC+Peak AC) Differential and Common Mode
Safety Certified

Applications:
Switching Power Supply Design
Motor Drive Design
Electronic Ballast Design
CRT Display Design
