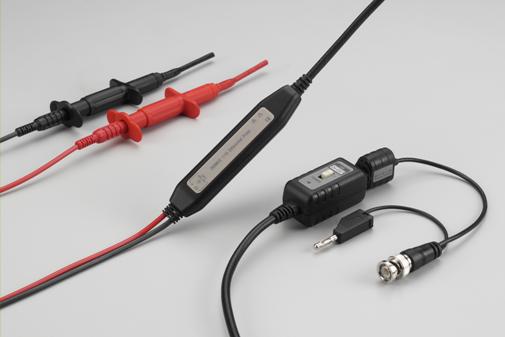

Features:
Bandwidth up to 200MHz
0.1mV
Sensitivity
Applications:
Telecom Measurement
xDSL
Applications
High Speed Power Measurement
Differential Line
Transmitter and Receiver Design
|
| |
|
| |
|
| |
| Bandwidth | 200MHz |
| Attenuation | 1/10 |
| Accuracy | +/- 1% |
| Input Impedance | 500kohm//7pF each side to ground |
| Input Voltage | |
| Differential Range | +/-20V |
| Common Mode Range | +/-60V |
| Absolute Max. Voltage | +/-60V |
| Output
Voltage |
|
| Swing (into 5kohm load) | +/-2V |
| Offset (typical) | <+/-2mV |
| Noise (typical) | 0.3mVrms |
| Source Impedance (typical) | 50 ohm |
| CMRR (typical) | -80dB@100Hz; -50dB@10MHz |
| Power Requirements | |
| Standard | 6VDC/90mA or 9VDC/70mA mains adaptor |
| Option | Removable battery pack or power leads |
| Input | One jack of 1A current rating |
| Length of BNC Cable | 125cm |
| Length of Input Leads | 50cm |
| Weight | 300g |
| Dimensions(LxWxH) | 111mm x 22mm x 14mm |
|
Features:
| |
|
