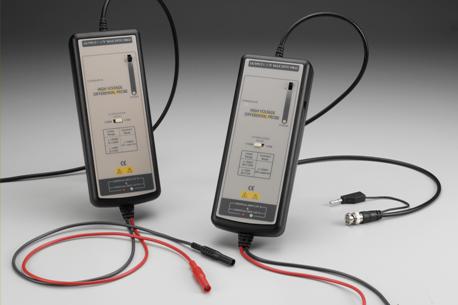

Bandwidth 70MHz
Attenuation 1:100/1000
Accuracy +/- 2%
Input Impedance 10Mohm//7pF each side to ground
Input Voltage
Differential Input Voltage +/-700V(DC + Peak AC) or 500Vrms @ 1/100
+/-7000V(DC + Peak AC) or 5000Vrms @ 1/1000
Common Mode Voltage +/-7000V(DC + Peak AC) or 5000Vrms @ 1/100 & 1/1000
Absolute Max. Voltage +/-7000V(DC + Peak AC) or 5000Vrms @ 1/100 & 1/1000
Output Voltage
Swing(into 50kohm load) +/-7V
Offset (typical) <+/-5mV
Noise (typical) 0.9mVrms
Source Impedance (typical) 50 ohm
CMRR (typical) -80dB@50Hz; -60dB@20kHz
Power Requirements
Standard 4xAA cells or 6VDC/70mA mains adaptor**
or regualted 9VDC/120mA mains adaptor
Options Power leads
Length of BNC Cable 90cm
Length of Input Leads 60cm
Weight 500g
Dimension (LxWxH) 202mm x 83mm x 38mm

Up to +/- 7000V(DC+Peak AC) Differential
Bandwidth up to 70MHz
Safety Certified
Overrange Indicator

High Voltage Floating Measurement
Voltage Surge Measurement
Power Electronics System Design
