Bandwidth 25MHz
Accuracy +/- 2%
Input Impedance 4Mohm//5.5pF each side to ground
Output Voltage
Swing (into 50kohm load) +/-7V
Offset (typical) <+/-5mV
Noise (typical) 0.7mVrms
Power Requirements
Standard 4xAA cells or 6VDC/60mA mains adaptor
or regualted 9VDC/40mA mains adaptor
Options Power leads
Weight 400g (probe and PVC jacket)
Dimension(LxWxH) 170mm x 63mm x 21mm

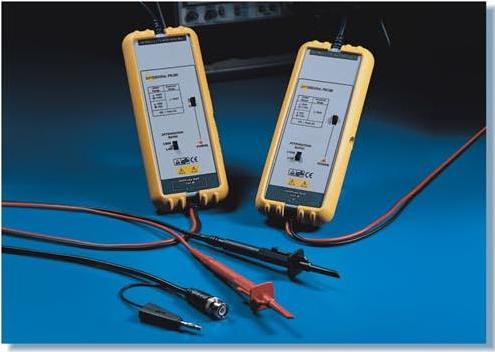

Specifications SI-9001 SI-9002
Attenuation Ratio 1:10/100 1:20/200
CMRR(typical) -86dB@50Hz, -66dB@20kHz -80dB@50Hz, -60dB@20kHz
Differential Input voltage
(DC+Peak AC)
+/- 70V@1/10
+/- 140V@1/20
Common Mode Voltage
(DC+Peak AC)
+/- 70V@1/10 & 1/100 +/- 1400V@1/20 & 1/200
Absolute Max. Input
(Each side to ground)
1000Vrms CAT III 1000Vrms CAT III


Up to +/- 1400V(DC+Peak AC) Differential and common Mode
Safety Certified
Economical Cost

Switching Power Supply Design
Motor Drive Design
Electronic Ballast Design
CRT Display Design
