Bandwidth 70MHz
Accuracy +/- 2%
Input Impedance 10Mohm//7pF each side to ground
Output Voltage
 Swing (into 50kohm load) +/-7V
Offset (typical) <+/-5mV
Noise (typical) 0.9mVrms
Source Impedance (typical) 50 ohm
CMRR (typical) -80dB@50Hz; -60dB@1MHz
Power Requirements
Standard 4xAA cells or 6VDC/70mA mains adaptor**
or regualted 9VDC/120mA mains adaptor
Options Power leads
Length of BNC Cable 90cm
Length of Input Leads 60cm
Weight (Including 4 cells) 500gms
Dimension (LxWxH) 202mm x 83mm x 38mm

Specificaions

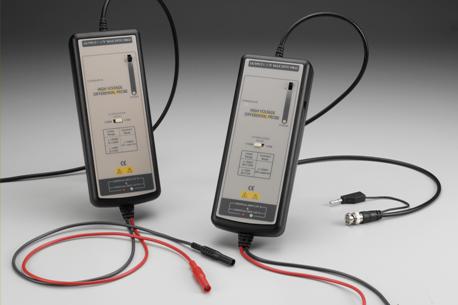

SI-9010
SI-9020
Attenuation Ratio
1:100/1000
1:200/2000

Differential Input Voltae
(DC+Peak AC)

+/-700V@1/100
+/-7000V@1/1000

+/-1400V@1/200
+/-14000V@1/2000
Common Mode Voltage
(DC+Peak AC)
+/-7000V@1/100 & 1/1000
+/-7000V@1/200 & 1/2000
Absolute Max. Voltage
(Ech side to ground)
2500Vrms CAT II
2500Vrms CAT II

Features:
Up to +/- 14000V(DC+Peak AC) Differential
Bandwidth up to 70MHz
Safety Certified
Overrange Indicator

Applications:
High Voltage Floating Measurement
Voltage Surge Measurement
Power Electronics System Design
